The world's first 200W charger
The Omega charger is the first charger to use the NV6127 IC to achieve up to 200W of power while also increasing efficiency to be 65% more compact than conventional chargers.
World's smallest 100W charger
The Omega 100W charger is also the world's smallest charger at the moment.
Fast charging compatible with iPhone 12
World's smallest 65w charger
With outstanding improvements from 2nd generation GaN technology, the 65w Omega GaN charger is up to 30% smaller than current GaN chargers, with an ultra-light weight of only 85g. This is the charger that suits your daily needs. 65W capacity is suitable for charging Macbook Pro 13".

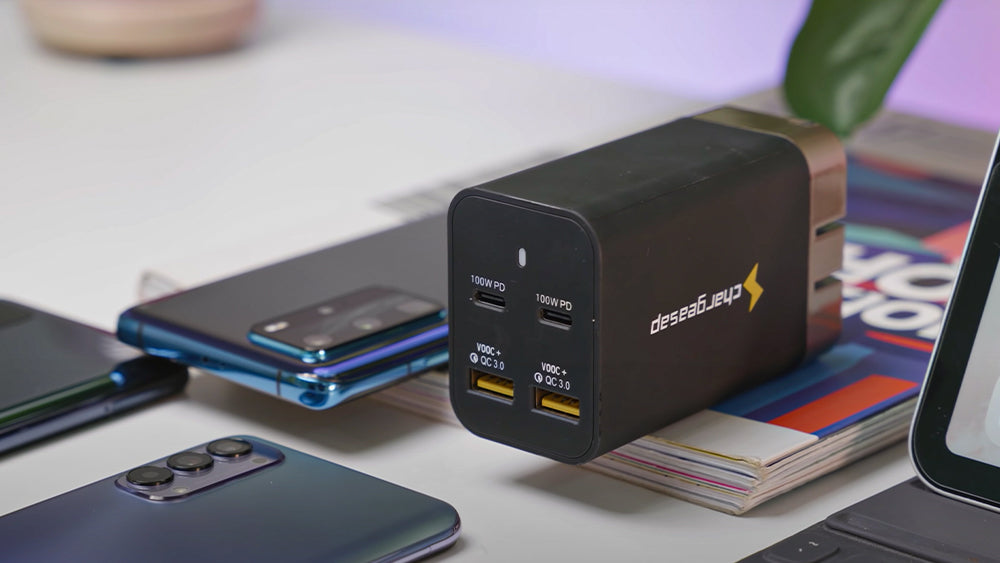

4 high power charging ports
The 200w charger is equipped with 4 ports including 2 USB-C PD 3.0 ports and 2 USB-A ports (supports QC 3.0, AFC, VOOC, SCP&FCP).
Charge 4 devices at the same time
“A single charger for all your devices. The 200W charger can allow you to fast charge devices such as laptops (Macbook Pro 16 “), tablets (iPad Pro), smartphones (iPhone) and other devices such as Airpods, Apple Watch at the same time.”
Compact and economical
Just 1 charger for all your needs. No need to worry every time you go out or for long trips.
Charge 2 Macbook Pro 16″ at the same time
With 2 USB C PD 3.0 ports supporting PPS, 1 Omega 200w charger can simultaneously supply power to 2 Macbook 16" Laptops.
This is the world's first charger that can achieve 200W power.
Compatible with most charging standards from manufacturers
Omega charger supports a variety of charging standards from QC 3.0, AFC, VOOC, SCP, FCP, these are exclusive charging standards from Samsung, Huawei, Oppo, Vivo and Oneplus.

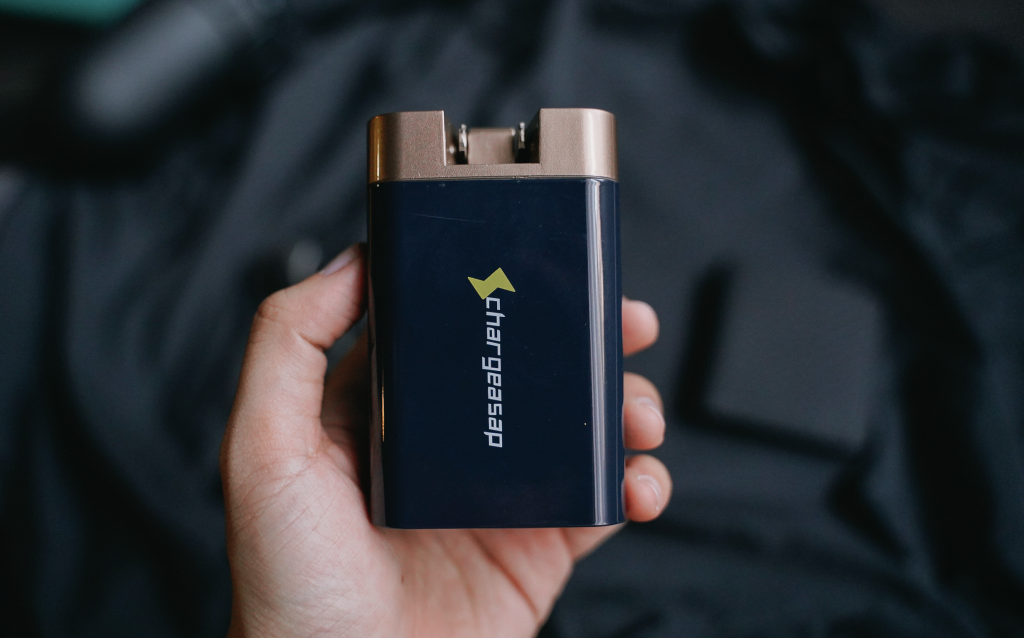

Pocket size
The size of Omega 200w is only equal to an ATM card and with a weight of 220g, you can easily carry this charger anywhere, anytime.
2-way folding legs
ChargeAsap is patented with a 2-way charging pin design. This design allows Omega to be plugged in anywhere.
The smallest 100W charger ever created
Extension socket
ChargeAsap designed an extension socket for 65W, 100W, 200W chargers so you can be more flexible in every situation. This is an accessory you can buy additionally.
Compare Omega 200W
Omega 200W charger design
“ChargeAsap spent more than 8 months developing the board and Firmware for Omega, with the aim of maximizing the Navitas GaNFast NV6127 power IC. The NV6127 is Navitas' latest power chip and has superior heat dissipation capabilities, while optimizing the efficiency of the GaN structure”
“To create the smallest 100W and 200W chargers ever, the circuit boards and components are arranged very compactly and space-saving. By applying top-notch materials, it delivers outstanding performance in a pocket-sized charger. The boards are covered by high-density heatsinks to aid heat dissipation.”
Using new generation GaN technology
Omega is a leap forward in GaN technology thanks to the application of Navitas GaNFast's latest IC circuit and Graphene film for heat dissipation. Omega is proud to be the leading product in charging technology with the highest current capacity of 200w with many improvements over the first generation of GaN chargers:
– Cooler
– Better performance
– Smarter power sharing
– Better quality, more reliable
Graphene membranes are first applied to aid cooling of the charger. The charger is then encased in a Polycarbonate (PC) and Acrylonitre Butadiene Styene (ABS) casing to complete the design.
About Navitas Partners
ChargeAsap is a partner of Navitas to optimize the performance and efficiency of GaNFast ICs. GaNFast technology is the technology being used by Lenovo, Xiaomi and OPPO
Navitas is the world's first company to manufacture GaN Power IC circuits, founded in 2014. Navitas has more than 100 patents on conductive materials and applications.
Graphene Cooling Technology
Omega is also the first charger to apply Graphene cooling technology with Graphene membranes interspersed with internal components to dissipate heat. With this technology, the charger is 30% cooler than conventional chargers.
Graphene membranes are first applied to aid cooling of the charger. The charger is then encased in a Polycarbonate (PC) and Acrylonitre Butadiene Styene (ABS) casing to complete the design.
Smart split
Omega is also the first charger to intelligently and precisely distribute power. Chargers using first-generation GaN technology often have limited USB-C ports and do not achieve the desired power. Omega offers a solution with independent ports to always ensure the USB-C port reaches the priority power of 100W.
How to split 200W line:
– C1 or C2 = 100W
– C1 + C2 = 100W + 100W
– C1+ A1 + A2 = 100W + 12w + 12W
– C1+ C2 + A1 = 100W + 65W + 22.5W
– C1+ C2+ A2 = 100W + 65W + 22.5W
– C1+ A1= 100W + 22.5W
– C2+ A2 = 65W + 22.5W
– A1 + A2 = 12W + 12W
– A1 or A2 = 22.5W
– C1 + C2 + A1 + A2 : 100W+ 65W + 12W +12W
How to split 100W line:
– C1 or C2: 100W
– C1 + C2: 45W + 45W
– C1 + A1: 65W + 22.5W
– C2 + A1: 65W + 22.5W
– A1: 22.5W
When plugging in 3 ports: 45W + 30W + 22.5W
How to split 65W line:
– C1 = 65W
– A1 = 22.5W
– C1 + A1 = 45W + 18W = 63W
Quick line correction
One of the shortcomings of current GaN chargers is the very long current calibration time. This means that when you plug a device into a USB-C port, it will not work for a few seconds.
The Omega 100W has a 0.5s calibration time on all ports.
Omega 200W calibrates instantly between 2 C ports and the calibration time between 2 A ports is 0.5s.
For older generation GaN chargers, the calibration time between ports is 3s.
Amazing charging speed
To illustrate the power of a 100W charger. SiliconZ tested charging with ChargerAsap's Flash 2.0 Power Bank and got the following results:
-
Charge 20,000mAh battery to 80% in 30 minutes
-
Fully charge 20,000mAh battery to 100% in 70 minutes
Safety Certification
Omega to achieve international certification for safe use, all chargers undergo tests to ensure this charger is safe for daily use.
Omega 200W Features
-
Product Dimensions: 88 x 55 x 42mm / 3.46″ x 2.17″ x 1.65″
-
Product Weight: 220g / 0.49lb / 7.76oz
-
Power Input: AC 100-240V 50/60Hz 3.5A
-
Max Power Output: 100W
-
Ports: 2 x USB-C and 2 x USB-A
-
USB-C1: 100W Power Delivery 3.0, 5~15V/3A, 20V/3.25A, 20V/5A (PPS)
-
USB-C2: 100W Power Delivery 3.0, 5~15V/3A, 20V/3.25A, 20V/5A (PPS)
-
USB-A1: Quick Charge 3.0: 5V/3A, 9V/2A, 12V/1.5A (18W), SCP, VOOC: 5V/4.5A (22.5W)
-
USB-A2: Quick Charge 3.0: 5V/3A, 9V/2A, 12V/1.5A (18W), SCP, VOOC: 5V/4.5A (22.5W)
-
Device Operating Temperature: -10ºC to 60ºC
-
Enclosure: PC + ABS
-
Protection: Over-current, Over-voltage, Over-temperature, Short-circuit Protection
Omega 100W Features
-
Product Dimensions: 60 x 55 x 26mm / 2.36″ x 2.17″ x 1.02″
-
Product Weight: 120g / 0.26lb / 4.23oz
-
Power Input: AC 100-240V 50/60Hz 2.5A
-
Max Power Output: 100W
-
Ports: 2 x USB-C and 1 x USB-A
-
USB-C1: 100W Power Delivery 3.0, 5~15V/3A, 20V/3.25A, 20V/5A (PPS)
-
USB-C2: 100W Power Delivery 3.0, 5~15V/3A, 20V/3.25A, 20V/5A (PPS)
-
USB-A1: Quick Charge 3.0: 5V/3A, 9V/2A, 12V/1.5A (18W), SCP, VOOC: 5V/4.5A (22.5W)
-
Device Operating Temperature: -10ºC to 60ºC
-
Enclosure: PC + ABS
-
Protection: Over-current, Over-voltage, Over-temperature, Short-circuit Protection
Omega 65W Features
-
Product Dimensions: 46mm x 42mm x 26mm / 1.81″ x 1.65″ x 1.02″
-
Product Weight: 85g / 0.18lb / 3oz
-
Power Input: AC 100-240V 50/60Hz 2.5A
-
Max Power Output: 65W
-
Ports: 1 x USB-C and 1 x USB-A
-
USB-C1: 65W Power Delivery 3.0, 5V 3A/ 9V 3A / 12V 3A / 15V 3A / 20V 3.25A (PPS)
-
USB-A1: Quick Charge 3.0: 5V/3A, 9V/2A, 12V/1.5A (18W), SCP, VOOC: 5V/4.5A (22.5W)
-
Device Operating Temperature: -10ºC to 60ºC
-
Enclosure: PC + ABS
-
Protection: Over-current, Over-voltage, Over-temperature, Short-circuit Protection
